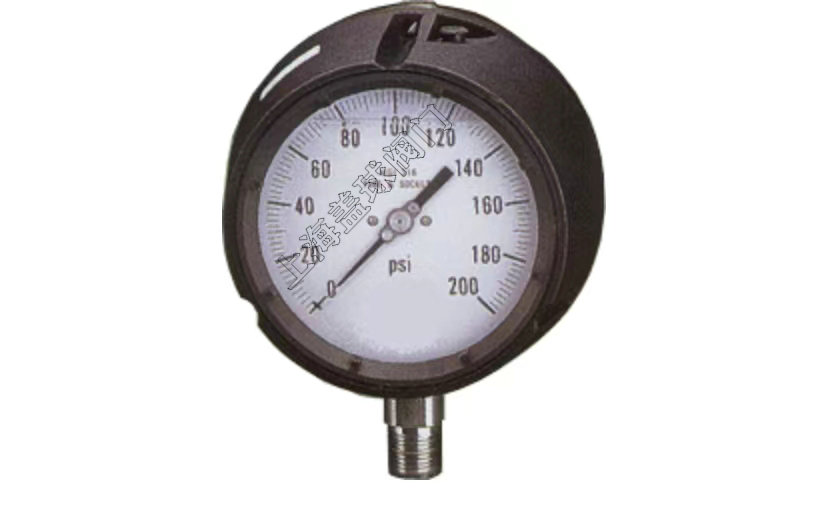

285.13酚醛壓力計-直立式-FTB

酚醛壓力計

The gauges are designed in accordance with safety specifications of ASME B 40.1 and DIN 16006. The safety design consists of a solid wall between pressure sensing element and the window. In addition to protecting users from fluid and particles in the event of failure, the back of the gauges are designed to blow out and release the pressure inside the case. The designs provide a better safety for monitoring the gauge in the event of gauge failures. The gauges are widely used in chemical and petrochemical processing, food and beverage processing industries, plastic and paper manufacturing plants, oceanographic engineering, and various engineering projects.

規格:

面徑: 4 1/2英吋

外殼: 酚醛

巴登管: 標準S.S. 316, 或 Monel

內機: S.S. 304 Rotary Geared

接頭: 標準S.S. 316, 或 Monel

鏡面: Polycarbonate (PC)

指針: 鋁, 微調型

面板: psi, kPa, bar, or kg/cm2 單或雙刻劃

接續部: 1/4", 1/2" NPT, BSP (JIS available)

壓力範圍: 真空, 聯成, 0-20,000 psi

精確度: ±0.5% F.S. - ASME Grade 2A

型號:

285.13: LM 直立式

285.43: LBM 埋入式

特色:

Solid Front

Blow-Out Disk on the Back

Liquid Fillable or Filled Optional

Temperature Compensated

Micro-adjustable Pointer

Heavy Duty SS Bushed Movement with Overload and Underload Stop

選擇配備:

Glycerin Filling

Silicone Filling

Snubber Screw installed in socket

Oxygen Cleaning (Dry only)

Red Set Hand

Tempered Glass Lens (Heat Treated Glass)

Plain Glass Lens

Receiver Gauge

Special Dial

Calibration Certificate
